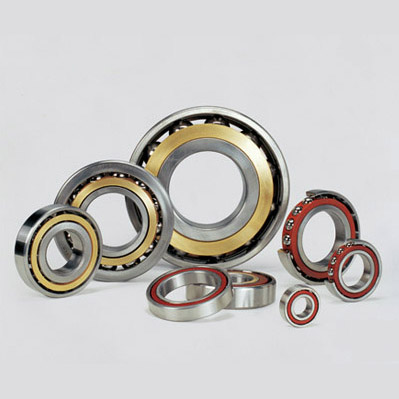

Angular contact ball bearing

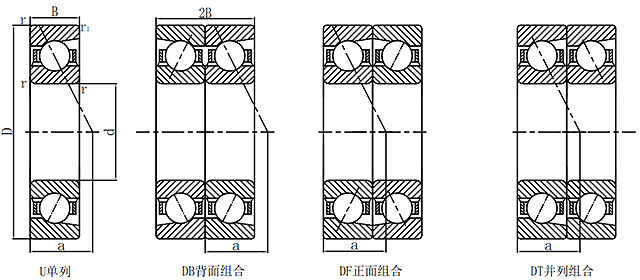

Boundary Dimensions					Basic Load Ratings		Limiting Speed		Bearing No.	Weight	Load Ratings		Limiting Speed		Bearing No.
外形尺寸					基本额定负荷		极限转速		轴承代号	重量	额定负荷		极限转速		轴承代号
d	D	B	2B	r min	Cr	Cor	Grease	Oil			Cr	Cor	Grease	Oil
mm	mm	mm	mm	mm	KN	KN	rpm	rpm		kg	KN	KN	rpm	rpm
10	26	8	16	0.3	4.9	2.2	43000	58000	7000C	0.019	7.95	4.4	34000	46000	7000CDB	7000CDF	7000CDT
10	30	9	18	0.6	5.4	2.64	41000	55000	7200C	0.029	8.8	5.25	32000	43000	7200CDB	7200CDF	7200CDT
12	28	8	16	0.3	5.4	2.64	39000	52000	7001C	0.021	8.8	5.25	31000	41000	7001CDB	7001CDF	7001CDT
12	32	10	20	0.6	7.1	3.45	36000	49000	7201C	0.036	11.5	6.95	29000	38000	7201CDB	7201CDF	7201CDT
15	32	9	18	0.3	6.25	3.4	34000	45000	7002C	0.029	10.1	6.75	27000	26000	7002CDB	7002CDF	7002CDT
	35	11	22	0.6	9	4.5	32000	42000	7202C	0.045	14.6	9.05	25000	33000	7202CDB	7202CDF	7202CDT
	42	13	26	1	13.3	6.85	28000	38000	7302C	0.081	21.6	13.7	23000	30000	7302CDB	7302CDF	7302CDT
17	35	10	20	0.3	7.7	4.1	31000	41000	7003C	0.038	12.5	8.25	24000	33000	7003CDB	7003CDF	7003CDT
	40	12	24	0.6	11.2	5.75	29000	38000	7203C	0.062	18.1	11.5	23000	30000	7203CDB	7203CDF	7203CDT
	47	14	28	1	15.7	8.25	26000	35000	7303C	0.109	25.6	16.5	21000	27000	7303CDB	7303CDF	7303CDT
20	42	12	24	0.6	1.5	6.05	27000	36000	7004C	0.068	17	12.1	22000	29000	7004CDB	7004CDF	7004CDT
	47	14	28	1	14.6	8.15	25000	34000	7204C	0.1	23.7	16.3	20000	27000	7204CDB	7204CDF	7204CDT
	52	15	30	1.1	18.5	9.95	23000	31000	7304C	0.14	30	19.9	18000	24000	7304CDB	7304CDF	7304CDT
25	37	7	14	0.3	5.05	3.85	27000	36000	7805C	0.021	8.2	7.65	21000	28000	7805CDB	7805CDF	7805CDT
	42	9	18	0.3	7.85	5.4	25000	33000	7905C	0.042	12.7	10.8	19000	26000	7905CDB	7905CDF	7905CDT
	47	12	24	0.6	11.7	7.45	23000	31000	7005C	0.078	19	14.9	18000	24000	7005CDB	7005CDF	7005CDT
	52	15	30	1	16.6	10.2	21000	28000	7205C	0.121	27	20.5	17000	22000	7205CDB	7205CDF	7205CDT
	62	17	34	1.1	26.4	15.3	19000	26000	7305C	0.222	43	30.5	15000	20000	7305CDB	7305CDF	7305CDT
30	42	7	14	0.3	5.35	4.5	23000	31000	7806C	0.025	8.7	9	18000	24000	7806CDB	7806CDF	7806CDT
	47	9	18	0.3	8.3	6.25	21000	28000	7906C	0.048	13.5	12.5	17000	22000	7906CDB	7906CDF	7906CDT
	55	13	26	1	15.1	10.3	20000	26000	7006C	0.112	24.6	20.6	16000	21000	7006CDB	7006CDF	7006CDT
	62	16	32	1	23	14.7	18000	24000	7206C	0.191	37.5	29.5	14000	19000	7206CDB	7206CDF	7206CDT
	72	19	38	1.1	32.5	20.3	16000	22000	7306C	0.33	52.5	40.5	13000	17000	7306CDB	7306CDF	7306CDT
35	47	7	14	0.3	5.8	5.25	20000	27000	7807C	0.028	9.4	10.5	16000	21000	7807CDB	7807CDF	7807CDT
	55	10	20	0.6	13.2	9.65	19000	25000	7907C	0.073	21.4	19.3	15000	20000	7907CDB	7907CDF	7907CDT
	62	14	28	1	19.1	13.7	17000	23000	7007C	0.149	31	27.3	14000	18000	7007CDB	7007CDF	7007CDT
	72	17	34	1.1	30.5	19.9	16000	21000	7207C	0.273	49.5	40	13000	17000	7207CDB	7207CDF	7207CDT
	80	21	42	1.5	40.5	25.8	14000	19000	7307C	0.44	65.5	51.5	11000	15000	7307CDB	7307CDF	7307CDT
40	52	7	14	0.3	6.05	5.75	18000	24000	7808C	0.031	9.8	11.5	14000	19000	7808CDB	7808CDF	7808CDT
	62	12	24	0.6	14	11.1	17000	22000	7908C	0.109	22.7	22.3	13000	18000	7908CDB	7908CDF	7908CDT
	68	15	30	1	20.6	15.9	15000	21000	7008C	0.184	33.5	32	12000	16000	7008CDB	7008CDF	7008CDT
	80	18	36	1.1	36.5	25.2	14000	19000	7208C	0.35	59	50.5	11000	15000	7208CDB	7208CDF	7208CDT
	90	23	46	1.5	49.5	32.5	13000	17000	7308C	0.606	80	64.5	10000	13000	7308CDB	7308CDF	7308CDT
45	58	7	14	0.3	7.6	7.4	16000	21000	7809C	0.038	12.3	14.8	13000	17000	7809CDB	7809CDF	7809CDT
	68	12	24	0.6	17.3	14.1	15000	20000	7909C	0.126	28.1	28.1	12000	16000	7909CDB	7909CDF	7909CDT
	75	16	32	1	24.4	19.3	14000	19000	7009C	0.233	39.5	38.5	11000	15000	7009CDB	7009CDF	7009CDT
	85	19	38	1.1	41	28.8	13000	17000	7209C	0.4	66.5	57.5	10000	13000	7209CDB	7209CDF	7209CDT
	100	25	50	1.5	64	43	11000	15000	7309C	0.83	104	86	9000	12000	7309CDB	7309CDF	7309CDT
50	65	7	14	0.3	7.9	8.05	14000	19000	7810C	0.049	128	16.1	11000	15000	7810CDB	7810CDF	7810CDT
	72	12	24	0.6	18.3	15.8	14000	18000	7910C	0.131	29.8	31.5	11000	14000	7910CDB	7910CDF	7910CDT
	80	16	32	1	26	21.9	13000	17000	7010C	0.253	42	44	10000	13000	7010CDB	7010CDF	7010CDT
	90	20	40	1.1	43	31.5	12000	15000	7210C	0.454	69.5	63.5	9100	12000	7210CDB	7210CDF	7210CDT
	110	27	54	2	75	51.5	10000	14000	7310C	1.05	122	103	8200	11000	7310CDB	7310CDF	7310CDT
55	72	9	18	0.3	13.1	12.7	13000	18000	7811C	0.079	21.2	25.5	10000	14000	7811CDB	7811CDF	7811CDT
	80	13	26	1	19.1	17.7	12000	16000	7911C	0.178	31	35.5	9800	13000	7911CDB	7911CDF	7911CDT
	90	18	36	1.1	34	28.6	12000	15000	7011C	0.37	55.5	57.5	9200	12000	7011CDB	7011CDF	7011CDT
	100	21	42	1.5	53	40	11000	14000	7211C	0.593	86	80	8300	11000	7211CDB	7211CDF	7211CDT
	120	29	58	2	87	60.5	9400	13000	7311C	1.43	141	121	7500	9900	7311CDB	7311CDF	7311CDT
60	78	10	20	0.3	13.4	13.5	12000	16000	7812C	0.101	21.8	27.2	9600	13000	7812CDB	7812CDF	7812CDT
	85	13	26	1	20	19.5	11000	15000	7912C	0.191	32.5	39	9000	12000	7912CDB	7912CDF	7912CDT
	95	18	36	1.1	35	30.5	11000	14000	7012C	0.387	57	61.5	8400	11000	7012CDB	7012CDF	7012CDT
	110	22	44	1.5	64	49.5	9700	13000	7212C	0.757	104	99	7700	10000	7212CDB	7212CDF	7212CDT
	130	31	62	2.1	99	70.5	8700	12000	7312C	1.68	161	141	6900	9200	7312CDB	7312CDF	7312CDT


10	26	8	16	0.3	4.65	2.07	29000	39000	7000	0.023	7.5	4.15	23000	31000	7000DB	7000DF	7000DT
	30	9	18	0.6	5.45	2.74	28000	37000	7200	0.029	8.8	5.45	22000	30000	7200DB	7200DF	7200DT
	30	9	18	0.6	5	2.52	24000	32000	7200B	0.029	8.1	5.05	19000	26000	7200BDB	7200BDF	7200BDT
	35	11	22	0.6	9.35	4.4	26000	34000	7300	0.04	15.2	8.75	2000	27000	7300DB	7300DF	7300DT
	35	11	22	0.6	8.8	4.1	22000	29000	7300B	0.041	14.3	8.2	18000	24000	7300BDB	7300BDF	7300BDT
12	28	8	16	0.3	5.05	2.46	26000	35000	7001	0.025	8.2	4.9	21000	28000	7001DB	7001DF	7001DT
	32	10	20	0.6	7.15	3.6	25000	33000	7201	0.035	11.6	7.2	20000	26000	7201DB	7201DF	7201DT
	32	10	20	0.6	6.6	3.35	21000	28000	7201B	0.036	10.7	6.7	17000	23000	7201BDB	7201BDF	7201BDT
	37	12	24	1	11.2	5.25	23000	30000	7301	0.044	18.2	10.5	18000	24000	7301DB	7301DF	7301DT
	37	12	24	1	10.5	4.95	19000	26000	7301B	0.045	17.1	9.9	16000	21000	7301BDB	7301BDF	7301BDT
15	32	9	18	0.3	5.8	3.15	23000	31000	7002	0.035	9.4	6.3	18000	24000	7002DB	7002DF	7002DT
	35	11	22	0.6	9.05	4.7	22000	29000	7202	0.046	14.7	9.4	17000	23000	7202DB	7202DF	7202DT
	35	11	22	0.6	8.35	4.35	18000	25000	7202B	0.046	13.6	8.7	15000	20000	7202BDB	7202BDF	7202BDT
	42	13	26	1	13.5	7.2	19000	26000	7302	0.055	21.9	14.4	15000	21000	7302DB	7302DF	7302DT
	42	13	26	1	12.5	6.65	17000	22000	7302B	0.057	20.3	13.3	13000	18000	7302BDB	7302BDF	7302BDT
17	35	10	20	0.3	7.15	3.85	21000	28000	7003	0.046	11.6	7.65	17000	22000	7003DB	7003DF	7003DT
	40	12	24	0.6	12	6.6	19000	26000	7203	0.064	19.4	13.2	15000	21000	7203DB	7203DF	7203DT
	40	12	24	0.6	11	6.1	17000	22000	7203B	0.066	17.9	12.2	13000	18000	7203BDB	7203BDF	7203BDT
	47	14	28	1	15.9	8.85	18000	24000	7303	0.107	25.9	17.3	14000	19000	7303DB	7303DF	7303DT
	47	14	28	1	14.8	8	15000	20000	7303B	0.109	24	16	12000	16000	7303BDB	7303BDF	7303BDT
20	42	12	24	0.6	9.7	5.6	19000	25000	7004	0.08	15.8	11.2	15000	20000	7004DB	7004DF	7004DT
	47	14	28	1	14.5	8.4	17000	23000	7204	0.1	23.6	16.8	14000	18000	7204DB	7204DF	7204DT
	47	14	28	1	13.3	7.7	15000	2000-	7204B	0.102	21.6	15.4	12000	16000	7204BDB	7204BDF	7204BDT
	52	15	30	1.1	18.7	10.4	16000	21000	7304	0.138	30.5	20.8	11000	17000	7304DB	7304DF	7304DT
	52	15	30	1.1	17.3	9.65	13000	18000	7304B	0.141	28.2	19.3		14000	7304BDB	7304BDF	7304BDT
25	42	9	18	0.3	7.15	4.95	17000	22000	7905	0.05	11.6	9.95	13000	18000	7905DB	7905DF	7905DT
	47	12	24	0.6	10.7	6.85	16000	21000	7005	0.093	17.5	13.7	12000	17000	7005DB	7005DF	7005DT
	52	15	30	1	16.2	10.3	14000	19000	7205	0.125	26.3	20.6	11000	15000	7205DB	7205DF	7205DT
	52	15	30	1	14.8	9.4	12000	16000	7205B	0.129	24	18.8	10000	13000	7205BDB	7205BDF	7205BDT
	62	17	34	1.1	26.4	15.8	13000	17000	7305	0.23	43	31.5	10000	14000	7305DB	7305DF	7305DT
	62	17	34	1.1	24.4	14.6	11000	15000	7305B	0.234	39.5	29.3	9100	12000	7305BDB	7305BDF	7305BDT
30	47	9	18	0.3	0.15	7.55	5.75	14000	19000	7906	15.5	0.058	12.3	11.5	12000	15000	7906DB
	55	13	26	1	0.6	13.9	7.45	13000	18000	7006	19	0.135	22.5	18.9	11000	14000	7006DB
	62	16	32	1	0.6	22.5	14.8	12000	16000	7206	21.5	0.193	36.5	29.6	9800	13000	7206DB
