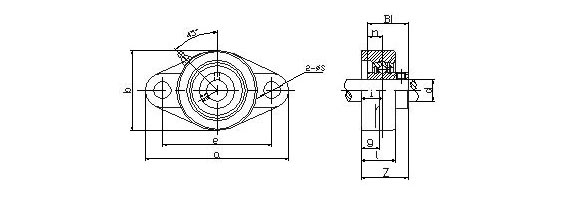

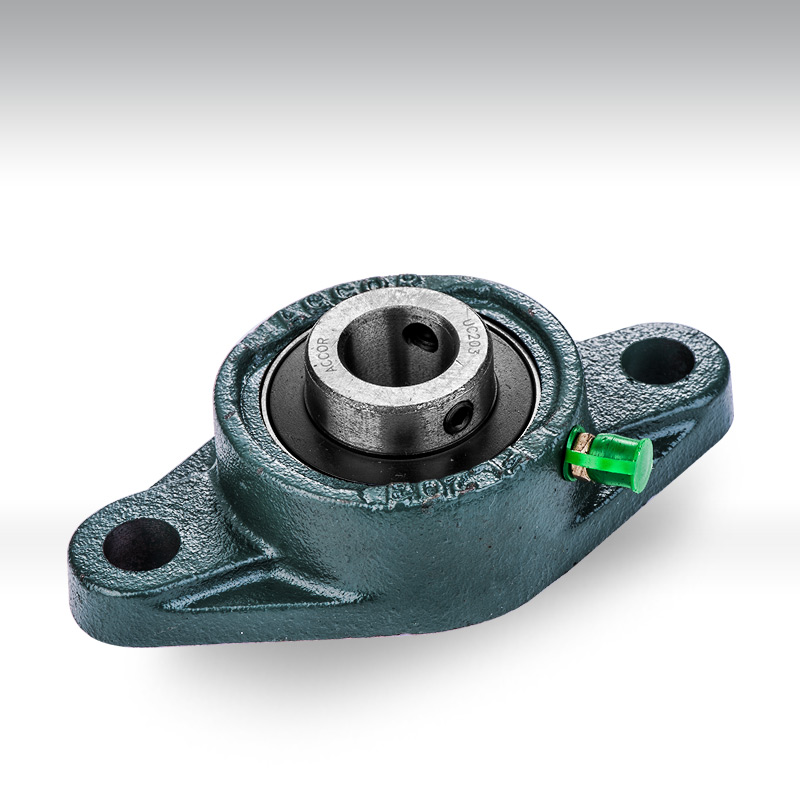

UCFL3

Unit No.
Shaft Dia d
Dimensions(mm)
Bolt Used
Bearing No.
Housing No.
Weight (kg)
a
e
i
g
l
s
b
z
Bi
n
(mm)
(in)
(in)
(mm)
UCFL305-14
7/8
150
113
16
13
29
19
80
39
38
15
M16
5/8
UC305-14
FL305
1.2
UCFL305-15
15/16
UC305-15
UCFL305-16
1
UC305-16
UCFL305
25
UC305
UCFL306-18
1-1/8
180
134
18
15
32
23
90
44
43
17
M20
3/4
UC306-18
FL306
1.7
UCFL306-19
1-3/16
UC306-19
UCFL306
30
UC306
UCFL307-20
1-1/4
185
141
20
16
36
23
100
49
48
19
M20
3/4
UC307-20
FL307
2.2
UCFL307-21
1-5/16
UC307-21
UCFL307-22
1-3/8
UC307-22
UCFL307-23
1-7/16
UC307-23
UCFL307
35
UC307
UCFL308-24
1-1/2
200
158
23
17
40
23
112
56
52
19
M20
3/4
UC308-24
FL308
2.9
UCFL308-25
1-9/16
UC308-25
UCFL308
40
UC308
UCFL309-26
1-5/8
230
177
25
18
44
25
125
60
57
22
M22
7/8
UC309-26
FL309
3.6
UCFL309-27
1-11/16
UC309-27
UCFL309-28
1-3/4
UC309-28
UCFL309
45
UC309
UCFL310-30
1-7/8
240
187
28
19
48
25
140
67
61
22
M22
7/8
UC310-30
FL310
4.7
UCFL310-31
1-15/16
UC310-31
UCFL310
50
UC310
UCFL311-32
2
250
198
30
20
52
25
150
71
66
25
M22
7/8
UC311-32
FL311
5.7
UCFL311-34
2-1/8
UC311-34
UCFL311-35
2-3/16
UC311-35
UCFL311
55
UC311
UCFL312-36
2-1/4
270
212
33
22
56
31
160
78
71
26
M27
1
UC312-36
FL312
6.8
UCFL312-38
2-3/8
UC312-38
UCFL312-39
2-7/16
UC312-39
UCFL312
60
UC312
UCFL313-40
2-1/2
295
240
33
25
58
31
175
78
75
30
M27
1
UC313-40
FL313
7.8
UCFL313
65
UC313
UCFL314-44
2-3/4
315
250
36
28
61
35
185
81
78
33
M30
1-1/8
UC314-44
FL314
10
UCFL314
70
UC314
UCFL315-48
3
320
260
39
30
66
35
195
89
82
32
M30
1-1/8
UC315-48
FL315
12
UCFL315
75
UC315
UCFL316-50
3-1/8
355
285
38
32
68
38
210
90
86
34
M33
1-1/4
UC316-50
FL316
13.7
UCFL316
80
UC316
UCFL317-52
3-1/4
370
300
44
32
74
38
220
100
96
40
M33
1-1/4
UC317-52
FL317
15.4
UCFL317
85
UC317
UCFL318-56
3-1/2
385
315
44
36
76
38
235
100
96
40
M33
1-1/4
UC318-56
FL318
19
UCFL318
90
UC318
UCFL319-60
3-3/4
405
330
59
40
94
41
250
121
103
41
M36
UC319-60
FL319
20.6
UCFL319
95
UC319
UCFL320-64
4
440
360
59
40
94
44
270
125
108
42
M39
UC320-64
FL320
25.7
UCFL320
100
UC320
UCFL321
105
440
360
59
40
94
44
270
127
112
44
M39
UC321
FL321
27
UCFL322
110
470
390
60
42
96
44
300
131
117
46
M39
UC322
FL322
38
UCFL324
120
520
430
65
48
110
47
330
140
126
51
M42
UC324
FL324
43.67
UCFL326
130
550
460
65
50
115
47
360
146
135
54
M42
UC326
FL326
61.3
UCFL328
140
600
500
75
60
125
51
400
161
145
59
M45
UC328
FL328
90
