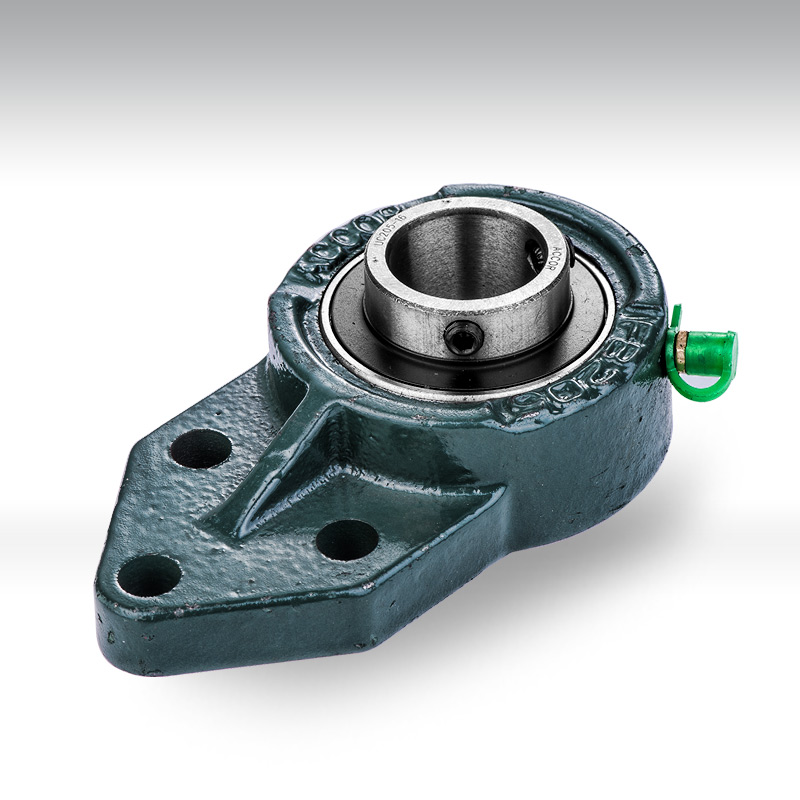

UCFB2

Unit No.
Shaft Dia d
Dimensions(mm)
Bolt Used
Bearing No.
Housing No.
Housing Weight (kg)
(in)
(mm)
a
h
e
j
i
g
l
s
b
f
z
Bi
n
mm
in
UCFB201-8
1/2
108
42.9
38.1
22
15.9
8
25.4
10
63.5
60.3
34.1
31
12.7
M8
5/16
UC201-8
FB204
0.38
UCFB202-9
9/16
UC202-9
UCFB202-10
5/8
UC202-10
UCFB203-11
11/16
UC203-11
UCFB204-12
3/4
UC204-12
UCFB201
12
UC201
UCFB202
15
UC202
UCFB203
17
UC203
UCFB204
20
UC204
UCFB205-13
13/16
121
46
41.3
28.5
16.7
9.5
28.5
10
70
63.5
36.5
34
14.3
M8
5/16
UC205-13
FB205
0.49
UCFB205-14
7/8
UC205-14
UCFB205-15
15/16
UC205-15
UCFB205-16
1
UC205-16
UCFB205
25
UC205
UCFB206-17
1-1/16
137
52.4
47.6
31.7
18.6
9.5
32
10
83
70
40.9
38.1
15.9
M8
5/16
UC206-17
FB206
0.61
UCFB206-18
1-1/8
UC206-18
UCFB206-19
1-3/16
UC206-19
UCFB206-20
1-1/4
UC206-20
UCFB206
30
UC206
UCFB207-20
1-1/4
156
60.3
50.8
31.7
21
12.7
36.5
13
95
83
46.4
42.9
17.5
M10
3/8
UC207-20
FB207
0.75
UCFB207-21
1-5/16
UC207-21
UCFB207-22
1-3/8
UC207-22
UCFB207-23
1-7/16
UC207-23
UCFB207
35
UC207
UCFB208-24
1-1/2
164
60.3
50
41.3
21
15.9
35.7
12
100
78
51.2
49.2
19
M10
3/8
UC208-24
FB208
0.8
UCFB208-25
1-9/16
UC208-25
UCFB208
40
UC208
UCFB209-26
1-5/8
174
65
54
42.9
21.8
18.3
38
12
106
80
51.2
49.2
19
M10
3/8
UC209-26
FB209
1.5
UCFB209-27
1-11/16
UC209-27
UCFB209-28
1-3/4
UC209-28
UCFB209
45
UC209
UCFB210-29
1-13/16
190
74.6
70
41.3
21.8
12.7
38
13
118
102
53.6
51.6
19
M10
3/8
UC210-29
FB210
1.8
UCFB210-30
1-7/8
UC210-30
UCFB210-31
1-15/16
UC210-31
UCFB210-32
2
UC210-32
UCFB210
50
UC210
