SD3100

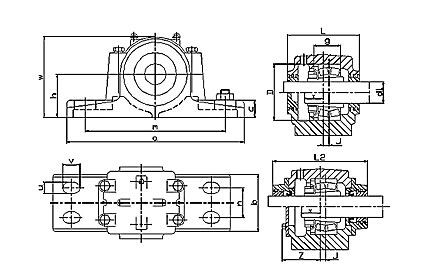

Housing
No.
Shaft dia
Dimensions(mm)
Housing
Bearing
Adapter
Locating Ring
d1(mm)
D
a
b
c
g
h
L
L2
W
m
n
J
X
Z
S
Wt (kg)
No.
Sleeve
Number
QTY
H8
H12
h12
SD3134
150
280
510
180
70
108
170
230
308
335
430
100
14
65
120
M24
70
23134K
H3134
HE3134
SR280x10
2
SD3136
160
300
530
190
75
116
180
240
318
355
450
110
15
68
130
M24
79
23136K
H3136
HE3136
SR300x10
2
SD3138
170
320
560
210
80
124
190
260
336
375
480
120
10
80
140
M24
100
23138K
H3138
HE3138
SR320x10
2
SD3140
180
340
610
230
85
132
210
280
356
410
510
130
10
82
150
M30
130
23140K
H3140
HE3140
SR340x10
2
SD3144
200
370
640
240
90
140
220
290
368
435
540
140
12
90
155
M30
146
23144K
H3144
SR370x10
2
SD3148
220
400
700
260
95
148
240
310
388
475
600
150
12
100
160
M30
190
23148K
H3148
SR400x10
2
SD3152
240
440
770
280
100
164
260
320
400
515
650
160
13
105
170
M36
230
23152K
H3152
SR440x10
2
SD3156
260
460
790
280
105
166
280
320
400
550
670
160
16
105
170
M36
260
23156K
H3156
SR460x10
2
SD3160
280
500
830
310
110
180
300
350
426
590
710
190
22
110
190
M36
320
23160K
H3160
SR500x10
2
SD3164
300
540
880
330
115
196
320
370
448
630
750
200
23
120
200
M36
350
23164K
H3164
SR540x10
2
SD3168
320
580
965
380
120
210
340
390
488
670
840
240
25
135
220
M45
550
23168K
H3168
SR580x10
2
SD3172
340
600
1040
390
130
212
360
390
498
720
890
255
22
145
225
M50
560
23172K
H3172
SR600x10
2
SD3176
360
620
1120
400
135
214
380
405
520
750
980
255
22
145
240
M55
780
23176K
H3176
SR620x10
2
SD3180
380
650
1245
420
140
220
400
405
552
790
1050
270
22
150
260
M60
885
23180K
H3180
SR650x10
2
