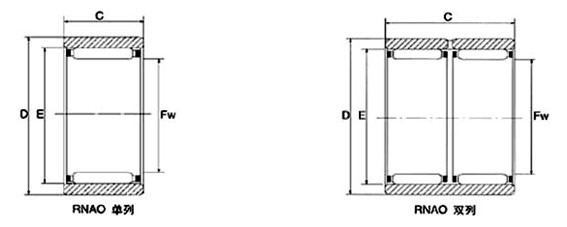

Needle roller without shoulder and inner ring RNAO

Shaft Diameter 轴径	Bearing Number 轴承代号	Boundary Dimensions外形尺寸				Basic Load Rating 基本额定负荷		Limiting Speed 极限转速


		Fw	D	C	E	Cr	Cor	Oil 油润滑
		Fw	D	C	E	Cr	Cor	Oil 油润滑
mm		mm				N		rpm
5	RNAO5X10X8	5	10	8	8	2050	1720	27800
6	RNAO6X13X8 TN	6	13	8	9	2300	1880	30000
7	RNAO7X14X8 TN	7	14	8	10	2250	1950	31000
8	RNAO8X15X10 TN	8	15	10	11	3050	3920	28000
10	RNAO10X17X10 TN	10	17	10	13	3960	4500	20000
12	RNAO12X19X13.5 TN	12	19	13.5	15	5400	7500	22000
12	RNAO12X22X12 TN	12	22	12	18	8950	8000	23000
15	RNAO15X23X13	15	23	13	19	6500	8900	21100
16	RNAO16X24X13	16	24	13	20	6200	8400	21100
	RNAO16X24X20	16	24	20	20	10200	14800	21100
	RNAO16X28X12	16	28	12	22	9500	10500	18000
17	RNAO17X25X13	17	25	13	21	9400	1100	18000
18	RNAO18X30X24	18	30	24	24	12100	16500	17600
20	RNAO20X28X13	20	28	13	24	7800	9600	16000
	RNAO20X28X26	20	28	26	24	10080	20500	16000
	RNAO20X32X12	20	32	12	26	10100	14100	16000
22	RNAO22X35X13	22	35	13	26	9200	12000	14000
25	RNAO25X35X16	25	35	16	29	10000	15500	16000
	RNAO25X35X17	25	35	17	29	10900	22000	15020
	RNAO25X35X26	25	35	26	29	12400	25000	15020
	RNAO25X37X16	25	37	16	32	15000	20900	12000
	RNAO25X37X32	25	37	32	32	25000	38900	12000
26	RNAO26X39X13	26	39	13	30	87600	10200	15020
30	RNAO30X40X17	30	40	17	35	12600	24000	10050
	RNAO30X40X26	30	40	26	35	16000	32000	10050
	RNAO30X42X16	30	42	16	37	13000	23200	10050
	RNAO30X42X32	30	42	32	37	29500	47000	10050
35	RNAO35X45X13	35	45	13	40	10200	22000	10000
	RNAO35X45X17	35	45	17	40	17800	24500	10000
	RNAO35X45X26	35	45	26	40	20500	40000	10000
	RNAO35X47X16	35	47	16	42	20400	31500	10000
	RNAO35X47X18	35	47	18	42	22500	35000	10000
	RNAO35X47X32	35	47	32	42	32000	55000	10000
37	RNAO37X52X18	37	52	18	44	11890	35500	8800
40	RNAO40X50X17	40	50	17	45	15400	29880	8800
	RNAO40X50X34	40	50	34	45	25186	57200	11000
	RNAO40X55X20	40	55	20	47	26300	46100	10000
	RNAO40X55X40	40	55	40	48	24700	87000	10000
42	RNAO42X57X20	42	57	20	50	26720	43700	10000
45	RNAO45X55X17	45	55	17	50	18000	36000	9000
45	RNAO45X62X40	45	62	40	53	42200	85050	9000
50	RNAO50X62X20	50	62	20	55	20690	46860	7500
	RNAO50X65X20	50	65	20	58	23200	40540	7000
	RANO50X65X40	50	65	40	58	39040	80600	7000
55	RNAO55X68X20	55	68	20	60	22480	52074	6500
60	RNAO60X78X20	60	78	20	68	28500	65300	5550
60	RNAO60X78X40	60	78	40	68	45000	99000	5550
65	RNAO65X85X30	65	85	30	73	37000	90900	4900
70	RNAO70X90X30	70	90	30	78	40010	105000	5100
80	RNAO80X100X30	80	100	30	88	52000	139000	4890
85	RNAO85X105X25	85	105	25	93	48600	106000	4900
90	RNAO90X105X26	95	105	26	98	42519	12000	4900
90	RNAO90X110X30	90	110	30	98	58100	152000	4900
100	RNAO100X120X30	100	120	30	108	50000	158000	3100
