H3200

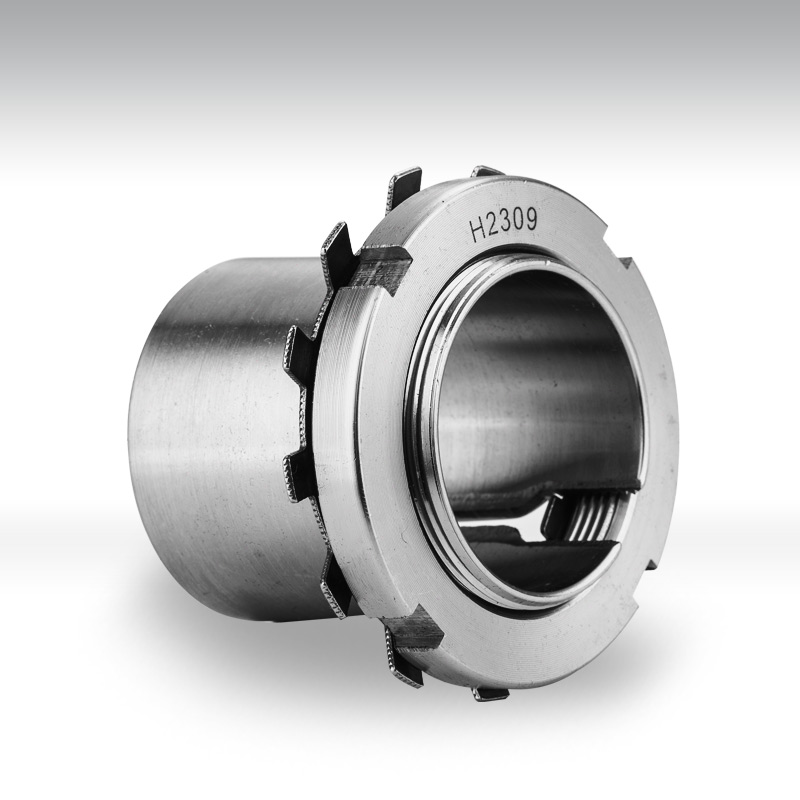

Adapter Sleeve

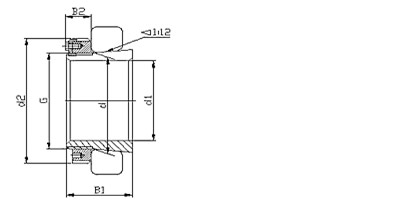

Dimensions(mm)
Weight (kg)
Composition
d1
d
d2
B1
B2
G
Sleeve
Lock nut
Lock card
H3260
280
300
380
240
53
T300x4
34.1
A3260
KM60
MS60
H3264
300
320
400
258
56
T320x5
39.3
A3264
KM64
MS64
H3268
320
340
440
288
72
T340x5
54.6
A3268
KM68
MS68
H3272
340
360
460
299
75
T360x5
60.2
A3272
KM72
MS72
H3276
360
380
490
310
77
T380x5
69.6
A3276
KM76
MS76
H3280
380
400
520
328
82
T400x5
81
A3280
KM80
MS80
H3284
400
420
540
352
90
T420x5
94
A3284
KM84
MS84
H3288
410
440
560
361
90
T440x5
118
A3288
KM88
MS88
H3292
430
460
580
382
95
T460x5
132
A3292
KM92
MS92
H3296
450
480
620
397
95
T480x5
152
A3296
KM96
MS96
