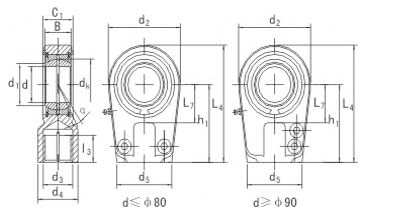

GIHR-K..DO

Rod end housing with right or left-hand female thread.
It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.
With locking slot and nut.
Rod end housing with a lubricating hole or grease nipple.

Bearing number
Dimenisions     mm
Load ratings    kN
Weight
d
d3
d4
L3
B
C1
d2
L7
h1
L4
d5
d1
dk
≈Kg
6H
min
min
Dynamic
Static
GIHR-K20DO
20
M16x1.5
25
17
16
19
56
25
50
80
46
24.2
29
9
30
72
0.43
GIHR-K25DO
25
M16x1.5
25
17
20
23
56
28
50
80
46
29.3
35.5
7
48
72
0.48
GIHR-K30DO
30
M22x1.5
32
23
22
28
64
30
60
94
50
34.2
40.7
6
62
106
0.74
GIHR-K35DO
35
M28x1.5
40
29
25
30
78
38
70
112
66
39.8
47
6
80
153
1.2
GIHR-K40DO
40
M35x1.5
49
36
28
35
94
45
85
135
76
45
53
7
100
250
2
GIHR-K50DO
50
M45x1.5
61
46
35
40
116
55
105
168
90
55.9
66
6
156
365
3.8
GIHR-K60DO
60
M58x1.5
75
59
44
50
130
65
130
200
120
66.8
80
6
245
400
5.4
GIHR-K70DO
70
M65x1.5
86
66
49
55
154
75
150
237
130
77.9
92
6
315
540
8.5
GIHR-K80DO
80
M80x2.0
105
81
55
60
176
80
170
265
160
89.4
105
6
400
670
12
GIHR-K90DO
90
M100x2.0
124
101
60
65
206
90
210
323
180
98.1
115
5
490
980
21.5
GIHR-K100DO
100
M110x2.0
138
111
70
70
230
105
235
360
200
109.5
130
7
610
1120
27.5
GIHR-K110DO
110
M120x3.0
152
125
70
80
265
115
265
407.5
220
121.2
140
6
655
1700
40.5
GIHR-K120DO
120
M130x3.0
172
135
85
90
340
140
310
490
257
135.5
160
6
950
2900
76
