AH3000

Adapter

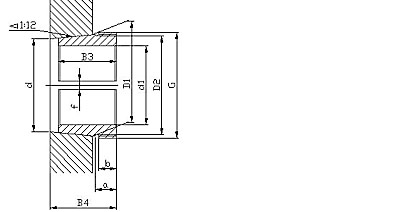

Dimensions(mm)
Weight
Lock nut
Sleeve
d1
d
B3
B4
D1
D2
a
b
f
G
(kg)
AH3024
115
120
60
64
124
123.5
16
13
4
M130x2
0.75
KM26
AH3026
125
130
67
71
134.5
134
17
14
4
M140x2
0.93
KM28
AH3028
135
140
68
73
144.7
144
17
14
4
M150x2
1.01
KM30
AH3030
145
150
72
77
154.9
154
18
15
4
M160x3
1.15
KM32
AH3032
150
160
77
82
165.3
164
19
16
5
M170x3
2.06
KM34
AH3034
160
170
85
90
175.8
174
20
17
5
M180x3
2.43
KM36
AH3036
170
180
92
98
186.3
185
23
17
5
M190x3
2.8
KM38
AH3038
180
190
96
102
196.5
195
24
18
5
T205x4
3.32
HM41
AH3040
190
200
102
108
206.9
205
25
19
5
T215x4
3.8
HM43
AH3044
200
220
111
117
227.6
226
26
20
5
T235x4
7.4
HM47
AH3048
220
240
116
123
248
247
27
21
5
T260x4
8.75
HM52
AH3052
240
260
128
135
268.8
267
29
23
6
T280x4
10.7
HM56
AH3056
260
280
131
139
289.1
288
30
24
6
T300x4
12
HM60
AH3060
280
300
145
153
310.1
309
32
26
6
T320x5
14.4
HM64
AH3064
300
320
149
157
330
329
33
27
6
T345x5
16
HM69
AH3068
320
340
162
171
351.4
350
34
28
6
T365x5
19.5
HM73
AH3072
340
360
167
176
371.7
370
36
30
6
T385x5
21
HM77
AH3076
360
380
170
180
391.9
390
37
31
6
T410x5
23.2
HM82
AH3080
380
400
183
193
412.8
411
33
33
6
T430x5
27.3
HM86
AH3084
400
420
186
196
433
432
40
34
8
T450x5
29
HM90
AH3088
420
440
194
205
453.7
452
41
35
8
T470x5
32
HM94
AH3092
440
460
202
213
474.2
473
43
37
8
T490x5
35.2
HM98
AH3096
460
480
205
217
494.4
493
44
38
8
T520x6
39.2
HM104
